Product Overview

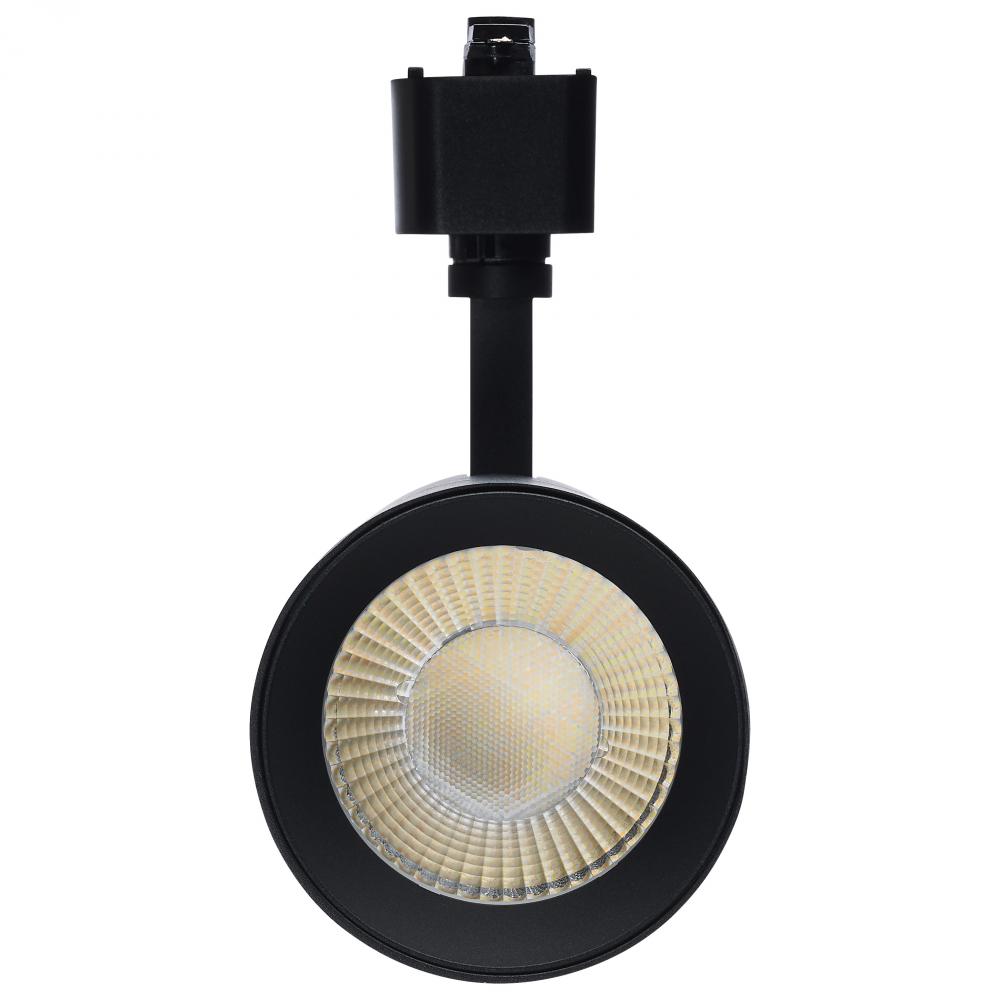

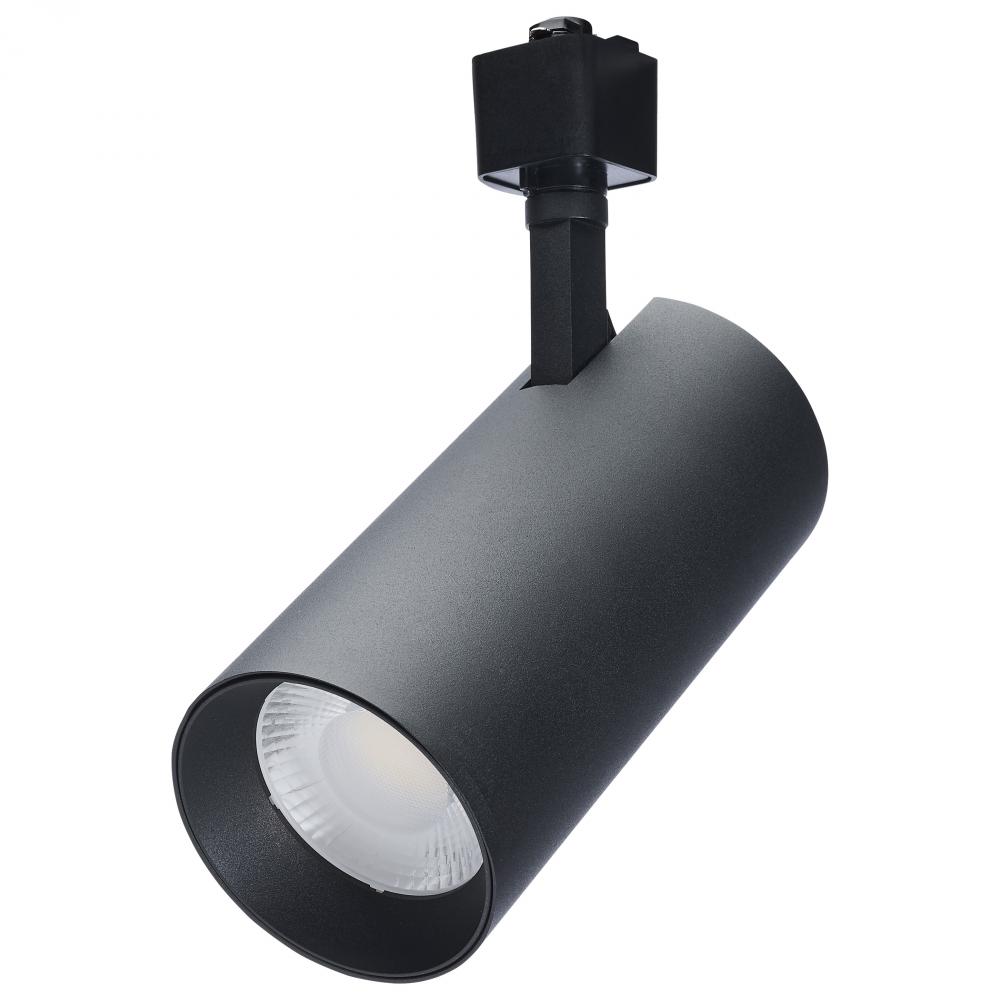

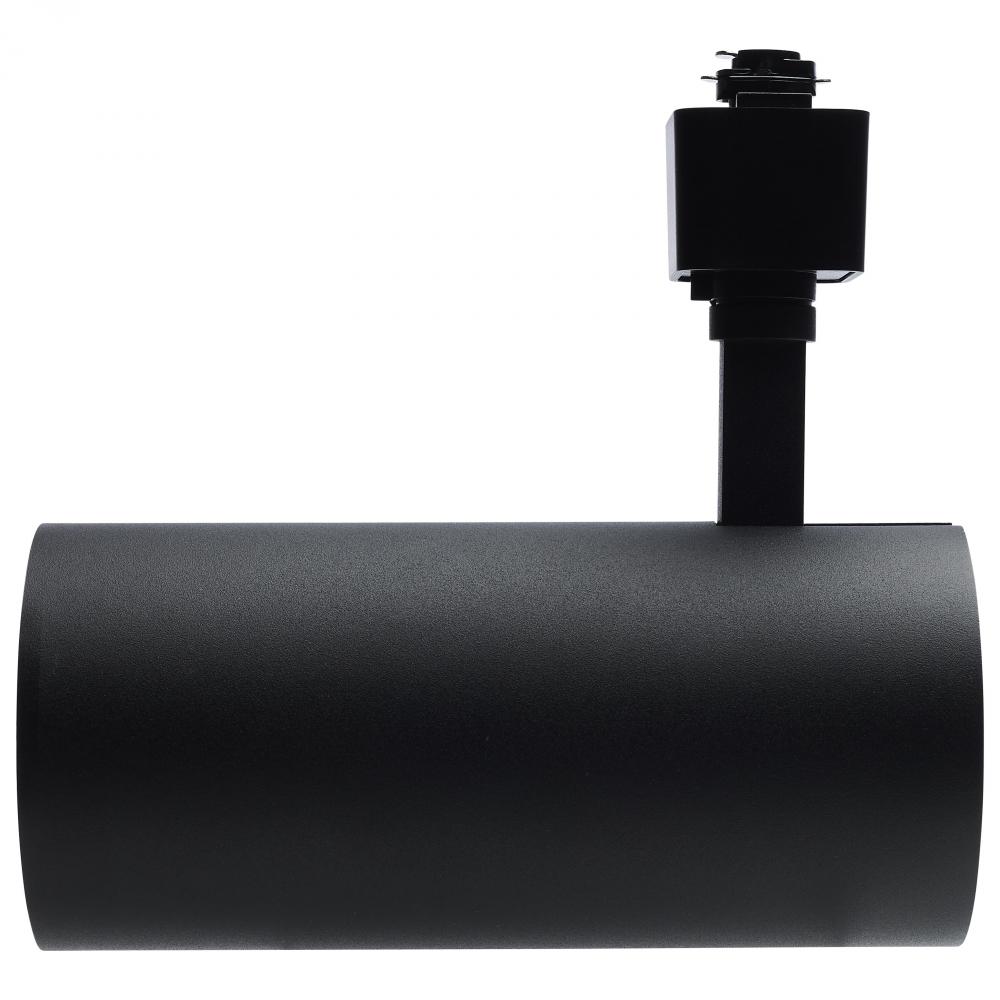

30 Watt LED Track Head; 48 Degree Beam Spread; 5 CCT Selectable; Matte Black Finish

Standard Information

Category:

Track Ltg.

Subcategory:

Track Heads

Option:

LED

Prop 65

Refinement Options

Category:

Track Lighting

Sub Category:

Track Head

Style:

Contemporary

Bulb Volts1:

120V

Avg Rated Hours:

30000

Bulb Shape1:

Integrated LED

Bulb Type1:

LED

Color Temperature:

Warm White to Natural Light

Dimmable:

Yes-Dimmable

Each Height:

9.45

Each Length:

3.78

Each Width:

3.39

Length:

6.71

Lumens:

2100L

Tariff Code:

9405.11.6020

Warranty:

3 Year Limited - Fixtures

Amps:

0.270A

ANSI Base:

Integrated

Beam Angle:

48

CA Prop-65:

Lead

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

California T24 Listed

Country Of Origin:

Vietnam

CRI:

90+

Dimmable Function:

120V only

Dimming Type:

Triac

Each Cube:

0.0701

Each Quantity:

1

Efficacy:

70.00 LPW

FCC Compliant:

Yes

Feature 1:

90 CRI High Quality Light

Feature 2:

48 Degree Beam Angle

Feature 3:

Satco H-Track Compatible

Feature 4:

Matte black finish

Feature 5:

5 CCT Selectable

Feature 6:

Dimmable

Feature 7:

T24 Compliant

Feature 8:

30,000 Life Hours

Feature 9:

3 Year Warranty

Finish Family:

Black

Fixture shape:

Cylinder

Incandescent Equivalent:

150W

Indoor Outdoor:

Indoor

IOT Enabled:

No

JA8 Compliant:

Yes

Lens Finish:

Clear

Lens Material:

Poly methyl methacrylate (PMMA)

Long Description:

SATCO|NUVO's TH724 LED track head fixture with a 48 degree beam spread, combines functionality and style for all of your lighting projects. This track head is designed to provide direct lighting in compact spaces and is CCT selectable, offering five di

Material:

Aluminum / Steel

Mounting Procedure:

Track

Operating Frequency:

60Hz

Operating Temp:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO|NUVO's LED track head fixtures available in 36 and 48 degree beam spreads, combine functionality and style for your lighting projects. These track heads are designed to provide direct lighting in compact spaces and are CCT selectable, offering fi

Safety Listing:

cETLus;cETLus - Listed

SDS class:

LED_Fixture

Short Description:

30W CCT LED TRACK HD 48 DG BLK

Temperature (CCT):

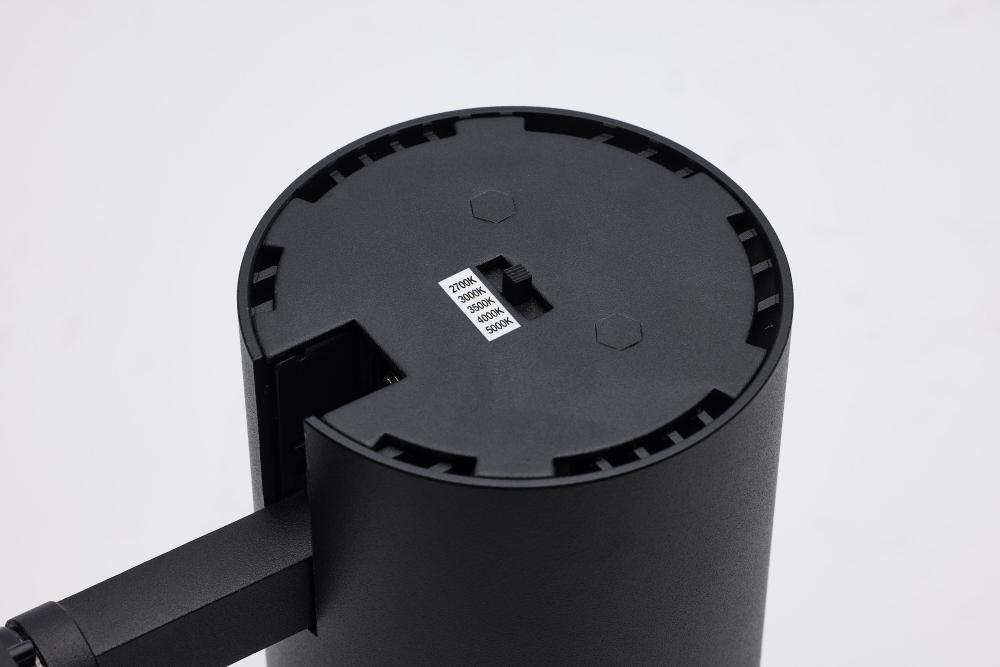

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Exempt

Title 24 Compliant:

Yes

Track Head Style:

H-Style

Wattage Selectable:

No

Weight Lb.:

1.57

Manufacturer Info

Manufactured By:

Nuvo
