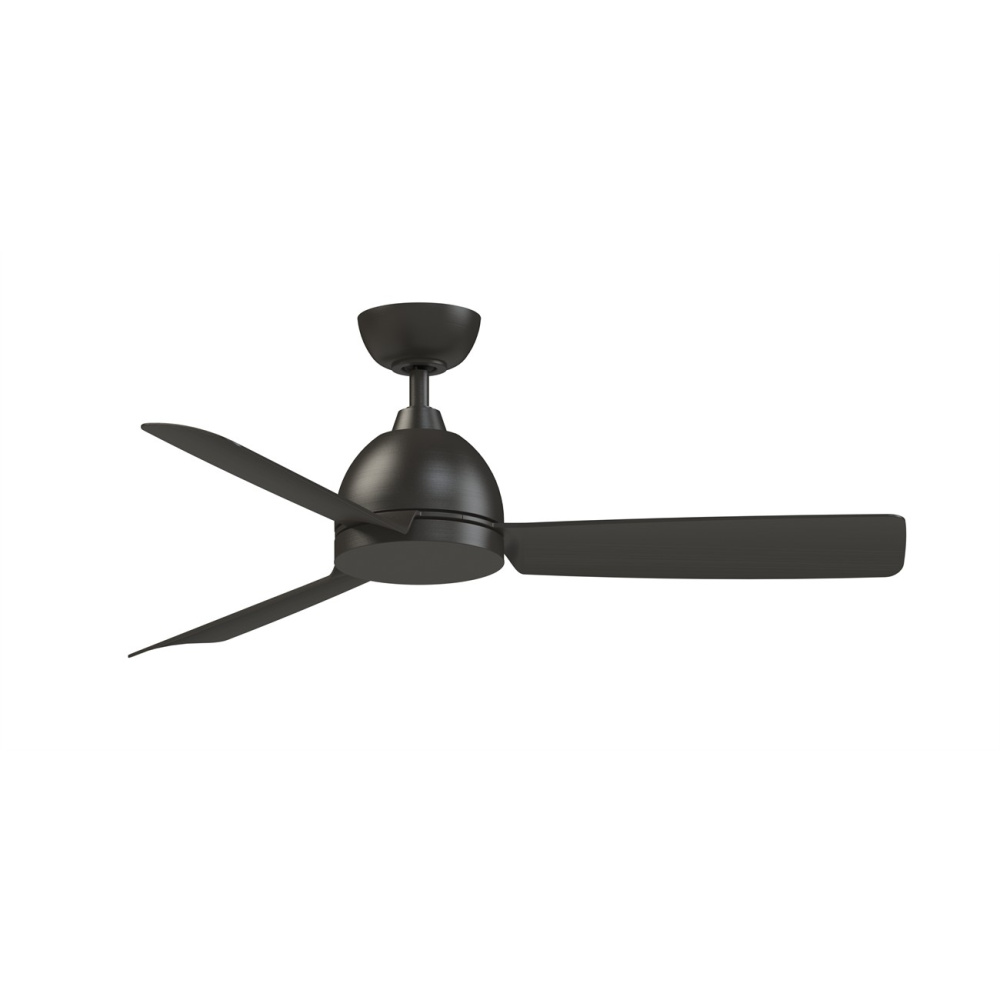

The Starboard NL is a powerful yet efficient ceiling fan that will transform the ambiance of any room. Its marine-grade construction and wet-rating make it perfect for use in damp indoor and outdoor areas, so you can enjoy a cool, comfortable breeze year-round. With a reversible motor that allows you to adjust the airflow direction, this fan delivers maximum energy savings. The included control as well as fanSync Bluetooth compatibility makes operating the Starboard NL a breeze. Elevate your space and your comfort with the Starboard NL.
Standard Information
Category:
Fans
Subcategory:
Ceiling Fans
Finish:
Bronze
Option:
Energy Efficient
Outdoor
Wet Rated
Refinement Options
Category:
Fan-Uni
Finish:
Dark Bronze
Option:
Energy Efficient
Outdoor
Family:
Starboard NL
Voltage:
120 V
Air Flow CFM:
6718
Air Flow Efficiency:
77
Blade Finish:
Dark Bronze
Blade Pitch:
14
Blade Span:
52
Canopy:
6.57 Dia x 2.62 H
Harmonized Codes:
8414.51.3000
Light Kit Included:
No
Motor Size:
188x25
Motor Type:
AC
Ship Carton Height:
11.61
Ship Carton Length:
26.22
Ship Carton Width:
10.67
Sold By:
Each
Warranty:
5 Years
Weight:
19.86
Airflow Efficiency Low:
165
Airflow Efficiency Medium:
113
Avg Airflow Efficiency:
86

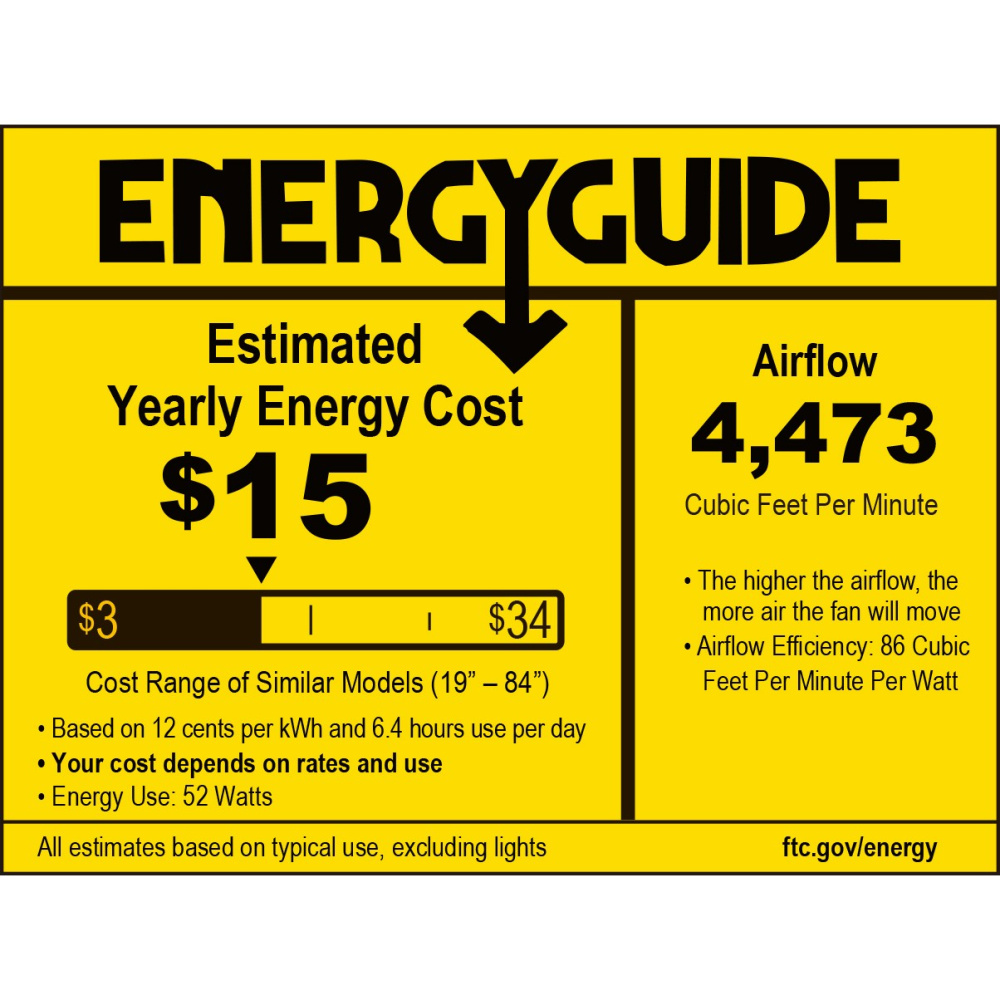

Avg CFM Energy:
4473
Avg Energy Use:
52
Avg Estimated Yearly Energy Cost:
15
Avg Estimated Yearly Energy Cost on HIGH:
25
Blade Finish Method:
Plated
Blade Material:
Composite
Blade Reversible:
No
Blade Sweep:
52
Cap Included:
Yes
Case Height:
11.61
Case Length:
26.22
Case Quantity:
1
Case Weight Pounds:
22.06
Case Width:
10.67
CEC Uploaded:
Yes
Ceiling To Blade Edge:
13.67
Ceiling To Bottom (No Light Kit):
13.61
CFM Low:
1926
CFM Medium:
3988
Country of Origin:
China
Current Draw High:
0.74
Current Draw Low:
0.27
Current Draw Medium:
0.47
DOE Classification:
LSSD
DOE-FTC Uploaded:
Yes
Downrod Length:
4.5
Energy Efficient:
Yes
Exempt from DOE Procedure:
No
Fan Energy Star 4:
No
Housing Diameter:
9.03
Included Control:
CW1WH-6750
Included Control Type:
Wall
Indoor:
Yes
Leadwire:
54
Location Rating:
Wet Rated
Max Ceiling Slope:
27
Motor Finish Method Type:
Painted
Motor Reversible:
Yes
Number of Blades:
3
Number Of Speeds:
3
Outdoor:
Yes
Regulated Product:
Yes
Reverse Switch Location:
Switch Housing
RPM High:
179
RPM Low:
59
RPM Medium:
105
Safety Rating:
UL Approved
Voltage Cycles:
60 Hz
Watts High:
88
Watts Low:
12
Watts Medium:
35
CONTROL: Includes a CW1WH-6750 wall - slide control that has 3 fan speeds
FINISH: Dark Bronze

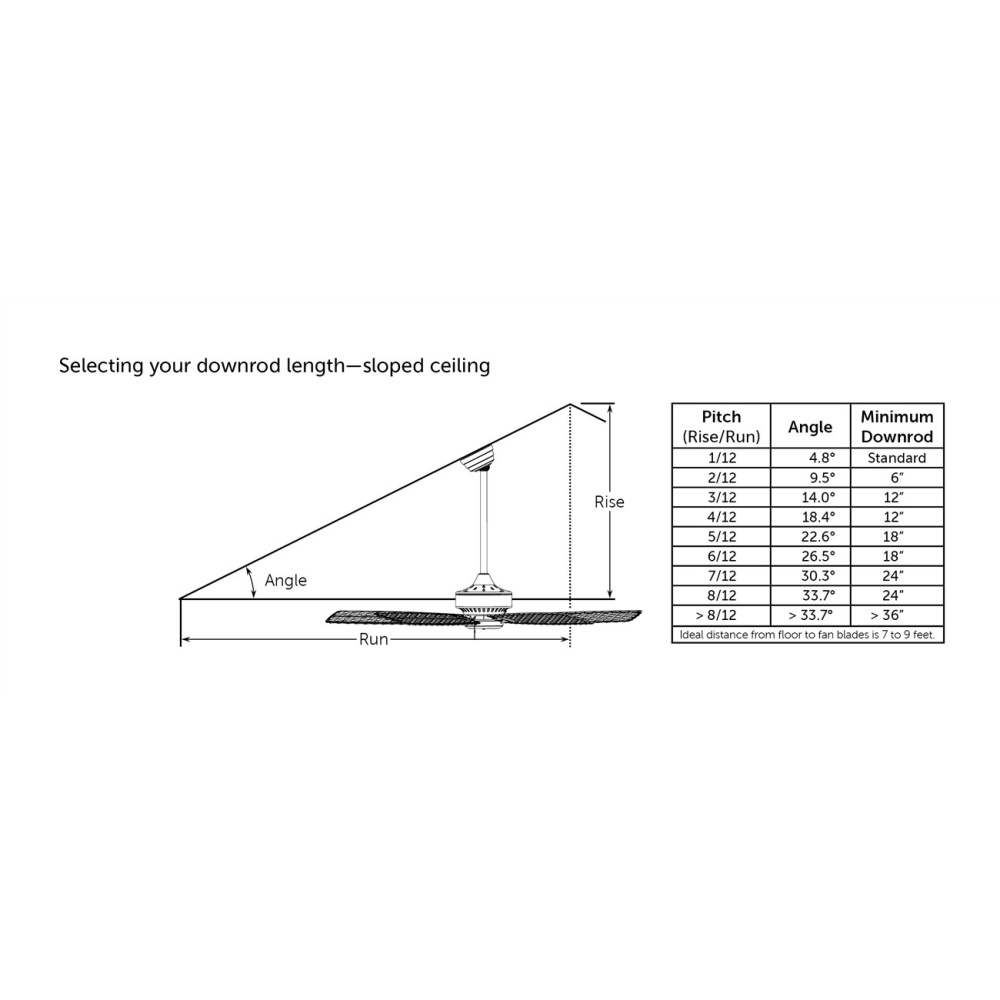

INSTALLATION: Mounts to flat or minimally sloped ceilings with the included 1-in diameter x 4.5-in length downrod
LIGHTING: Light kit not included
LOCATION: Wet Rated for use in indoor and outdoor spaces, making it ideal for any indoor room or spaces like gazebos, patios, pergolas, or porches

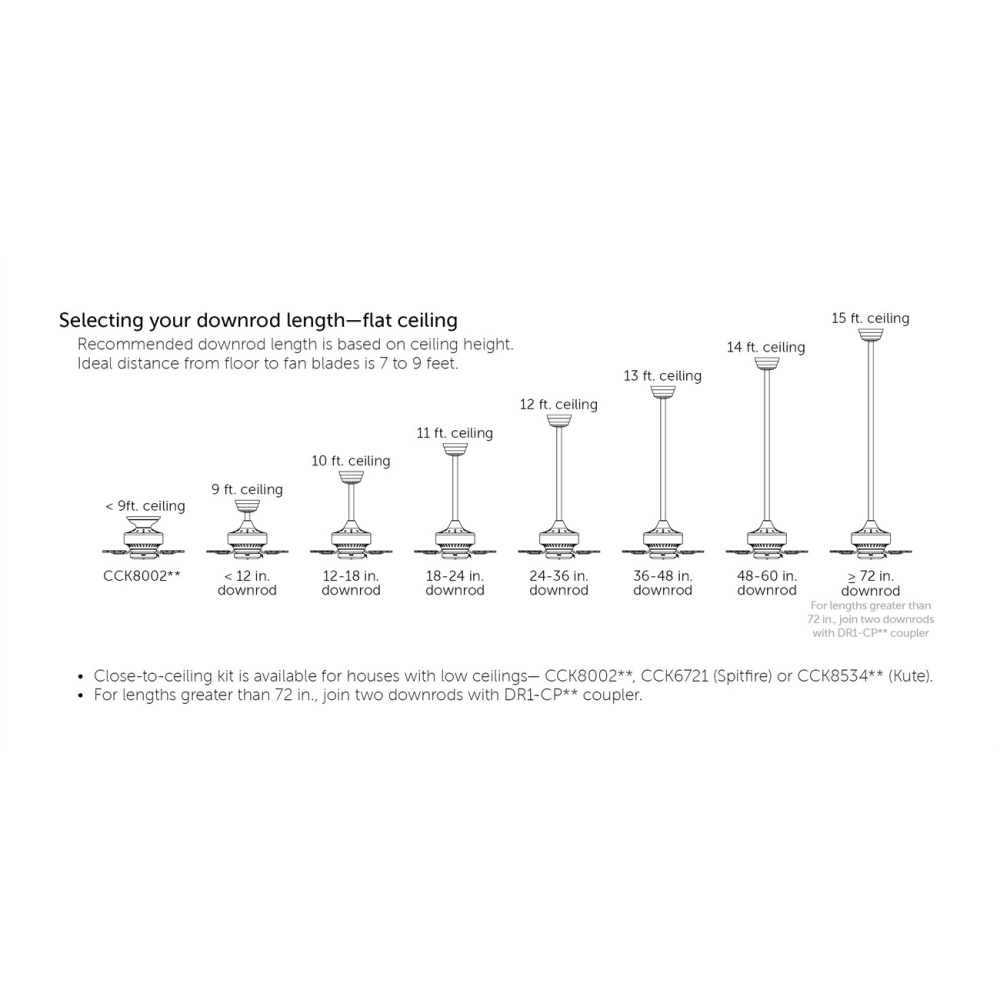

Optional downrods are available in lengths up to 72 inches to adjust the fans height between 7-ft to 9-ft from the floor, ensuring maximum airflow
POWER: The 3-speed, energy efficient AC motor provides airflow up to 6,718 CFM
SAVINGS: Features a reversible motor, allowing you to switch the direction of your fans rotation and create energy savings
TECHNOLOGY: Compatible with Fanimation Wi-Fi fanSync and most smart home devices (required controls sold separately)
